PORCELAIN FUSE UNIT

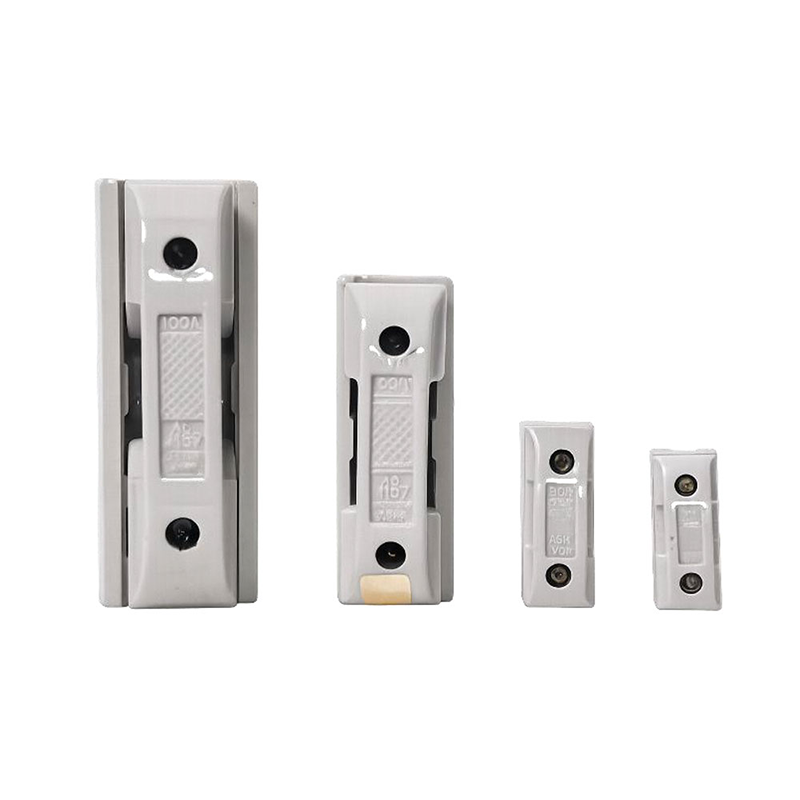

MVE Electricals manufactures a comprehensive range of Porcelain Fuse Units designed for reliable circuit
protection in residential, commercial, and industrial electrical systems. Our fuse units are available in multiple
current ratings with Copper, Brass, and customized contact material options as per customer and OEM
requirements.
Available Range
Standard Current Ratings
• 32A Porcelain Fuse Unit
• 63A Porcelain Fuse Unit
• 100A Porcelain Fuse Unit
• 200A Porcelain Fuse Unit
• 315A Porcelain Fuse Unit
• 400A Porcelain Fuse Unit
• 500A Porcelain Fuse Unit
Contact Material Options
Copper Series
• High conductivity copper contacts
• Heavy duty industrial applications
• Low heat generation
• Better electrical performance
Brass Series
• Economical design
• Reliable operation
• Suitable for standard applications
• Durable construction
OEM / Customized Quality Options
• Customer specified contact thickness
• Customized terminal design
• Heavy gauge copper/brass options
• Special export quality finishing
• Branding and labeling support
• Custom mounting configurations
Standard Product Features
• High strength porcelain body
• Excellent thermal resistance
• Durable fuse carrier construction
• Reliable overload protection
• Long service life
• Strong terminal connections
• Suitable for industrial environments
• Easy fuse replacement
Applications
• Distribution Boards
• Industrial Electrical Panels
• Commercial Installations
• Factory Power Distribution
• Motor Protection Systems
• Utility Protection Applications
200 AMP PORCELAIN FUSE UNIT
Performance Details
The 200 Amp Porcelain Fuse Unit is designed for dependable circuit protection and safe current carrying performance in industrial and commercial electrical systems. The fuse unit is manufactured using high strength porcelain body and heavy duty copper or brass contacts for reliable electrical conductivity and long operational life.
Product Performance Features
• High current carrying capacity
• Excellent thermal resistance
• Reliable short circuit protection
• Strong mechanical construction
• Low heat generation during operation
• Stable electrical conductivity
• Durable porcelain insulation body
• Suitable for continuous industrial duty
Technical Performance Specifications
| Parameter | Performance Details |
|---|---|
| Rated Current | 200 Amp |
| Rated Voltage | 240/415V AC |
| Frequency | 50/60Hz |
| Body Material | High Grade Porcelain |
| Contact Material | Copper / Brass |
| Insulation Performance | High Thermal Resistance |
| Mounting Type | Surface Mount |
| Fuse Type | Rewireable / KitKat Type |
| Application | Circuit Protection |
| Standard | IEC |
Operational Benefits
• Efficient overload protection
• Reliable short circuit isolation
• Long service life under heavy load conditions
• Easy fuse replacement and maintenance
• Suitable for industrial and commercial installations
Suitable Applications
• Industrial Distribution Panels
• Factory Electrical Systems
• Commercial Power Distribution
• Motor Protection Circuits
• Utility Distribution Boards
• Heavy Electrical Installations
